After the process has been modeled, we can assign roles, documents, and IT systems.
Place your cursor over a task where you want to assign a role. Right-click the task and select Select role.

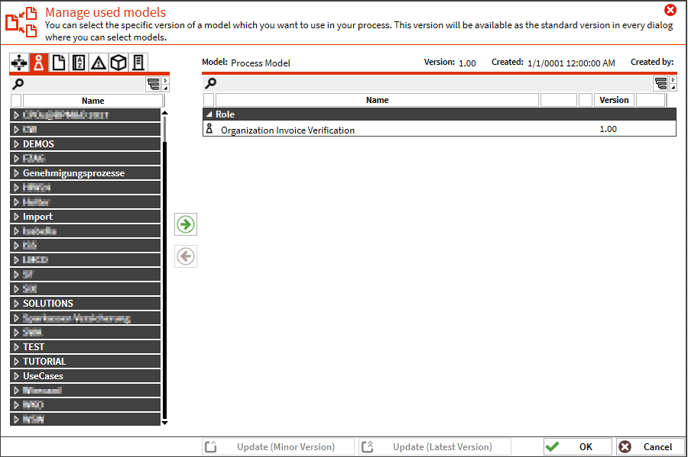

The dialog Select role opens. But because you have not selected a role model yet, another dialog, Manage used models, opens and is displayed in front. Select at least one role model from Manage used models in order to return to the Select role dialog.
Now that you have selected a role model, the dialog Select role shows all available roles inside the selected role model. By double-clicking a role in the left navigation, you add it to the right section. Alternatively, you can use the green and red arrow to add or remove a role from an assignment. Click OK to close this dialog.
The assigned role is now displayed at the bottom of the task.
Add different type models
Within the dialog Manage used models, you can add all kind of model types to your process model. Simply switch between the model types using this selection.
